200 - 260 t/h cereal pellet belt conveyor equipment
Release Time:2015-11-21 12:48:22
Views:
Brand:Shelley Engineering
Model:
Order Hotline:+86-18562323641
Details +86-18562323641

200 - 260 t/h cereal pellet belt conveyor equipment





Application

A Belt Conveyors consists of a body of a metal frame with pulleys at either end and bed of rollers in between. Belt is looped around each pullies. When one of the belt is powered by electrical motor, the belting slides across the rollers there by moving the product on the top of the belt.



Our conveyor is used for horizontally transporting grain, seed, feed, cement, coal and other granular or powdered materials. Current applications of the conveyor is to  provide  efficient and affordable transport for grain,feed , etc.



Belt conveyor

Belt conveyor is a kind of safe conveyor for grain transporting; It will do less damage to the material and will protect the material.



Specification

Model Capacity(t/h) Conveying length(m) Power (kw)
TDSG40 40-50 5.5 3
TDSG50 50-100 15 3
TDSG65 100-200 9.5 3
TDSG80 200-260 15 3

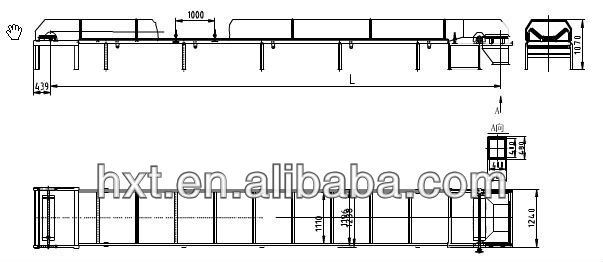

Structure



Belt, rollers,machine structure,supporting rollers,drive device etc

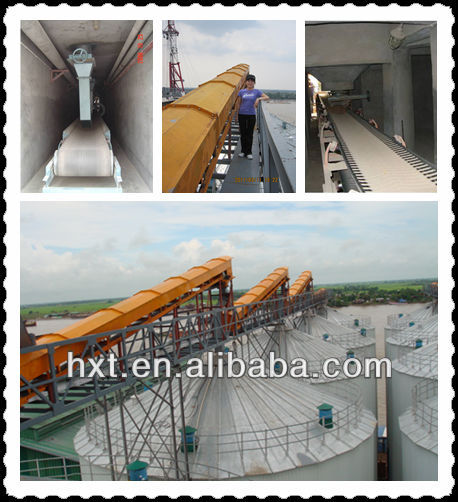

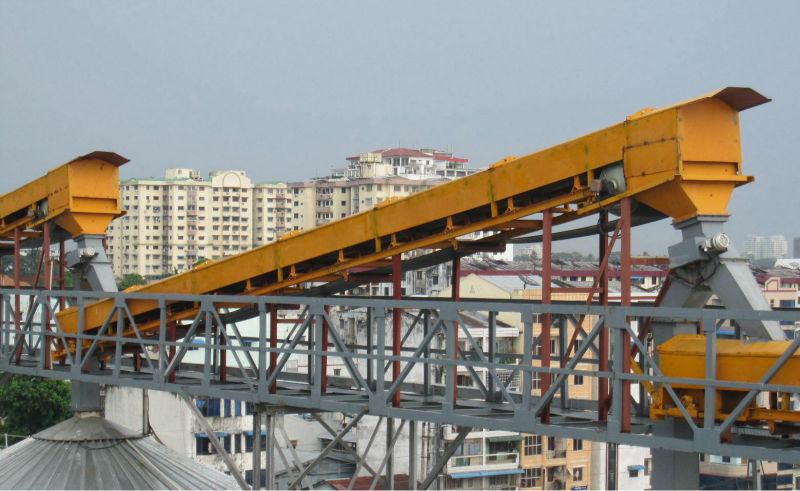

Belt Conveyor In Silo System
