80 - 100 t/h nylon wheat bucket elevator system
Release Time:2015-11-21 15:40:10
Views:
Brand:Shelley Engineering
Model:
Order Hotline:+86-18562323641
Details +86-18562323641

80 - 100 t/h nylon wheat bucket elevator system

Product Description

Bucket elevator is used for grain transprotation, especially for vertical transportation of grain.

The capacity of elevator ranges from 10ton per hour to 200ton per hour;

It will depend on your practical use to choose the most suitable elevator.

TDTG series bucket elevator is a kind of special equipment for continually and vertically deliver grains, which is widely used in different fields such as oil,feed,flour,seed starch, grain and so on. Taking advantage of the present bucket elevator situation both at home and abroad, we designed TDTG Series Bucket Elevator, which caught up the advanced national levels.

Features:

  • Budget saving
  • small volume and large transporting capacity
  • save electricity

Having reasonable running structure, the coefficient of friction is large.

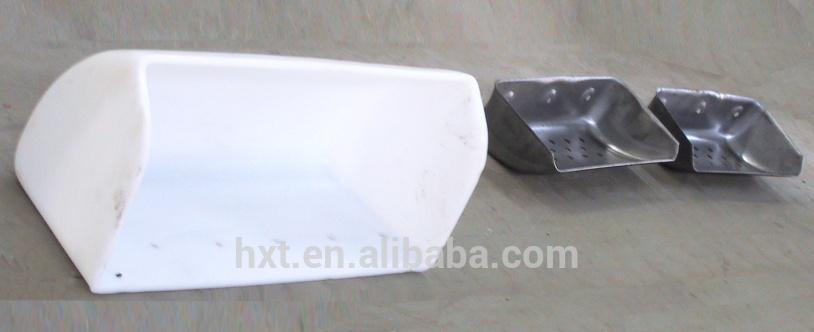

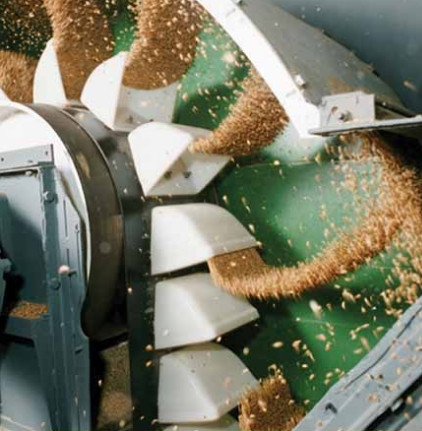

Adopting high-strength plastic bucket, which has long service time and large capacity.

With high strength polyester dustpan belt, strength of tensile is high, lower tensile rate, service time is long.

There is an anti pin organ in the machine. When the power is cut off and the bucket elevator suddenly stopped, materials won't fall back down from it, so it can reduce raking out. When we go to check, the strap won't reverse so it can insure the checker safe.



Main technical parameter of TDTG 300t/h grain Elevators



Model Head wheel diameter(mm) Bucket size(mm) Line speed(m/s) Capacity Voltage(KW) Tratement
TDTG60/28 600 DQ280 2.5   120-150t/h 11-75 Painted or galvanized


Head and its operation platform:

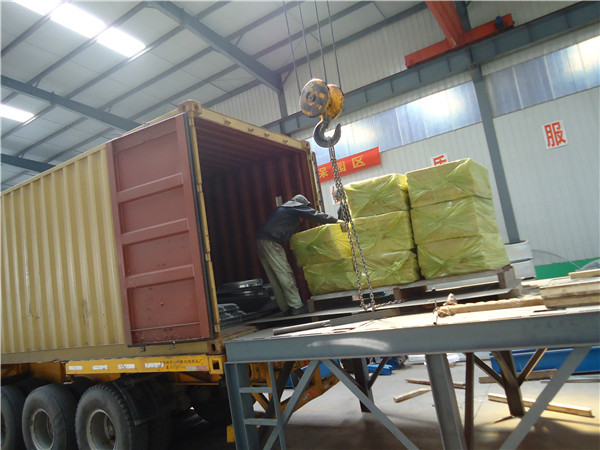

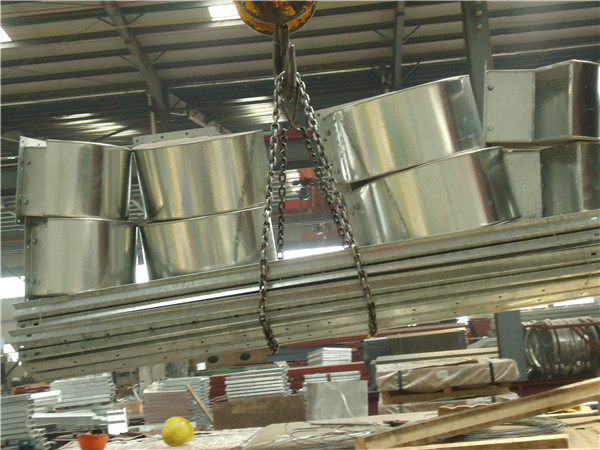

Packaging & Shipping






Our Services

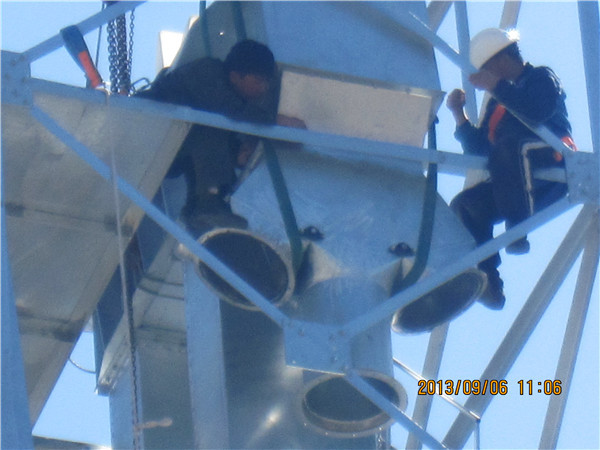

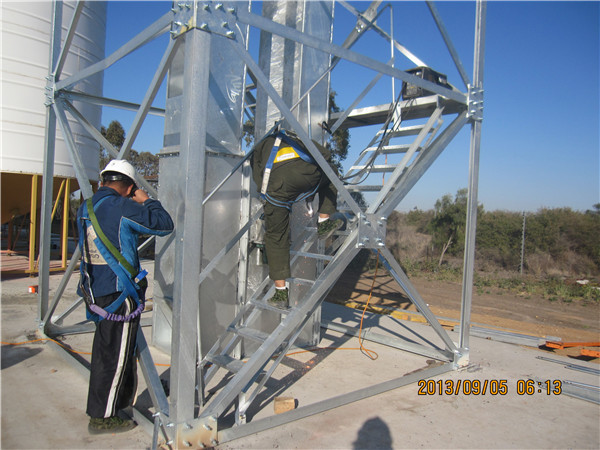

Bucket Elevator installation






Company Information



ISO 9001 & BV Certification:



Welcome you visit us at any time!
