2-500T corn storage silos and 1-100T soybeans meal storage silo project has been
Come From:Taian Shelley Engineering Co., Ltd.Release Time:2023-4-28 15:10:05 Views:
2-500T corn storage silos and 1-100T soybeans meal storage silo project has been

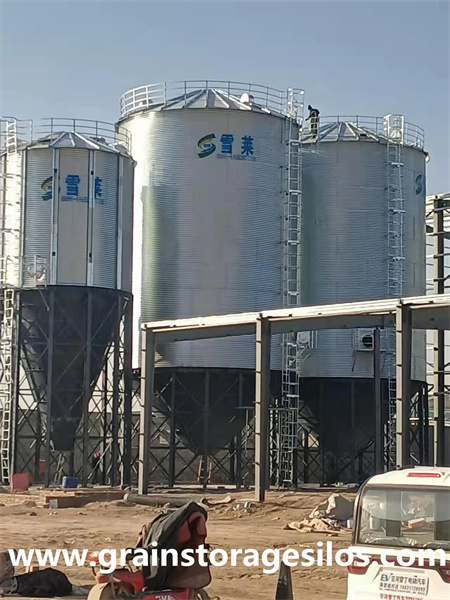

2-500T corn storage silos and 1-100T soybeans meal storage silo project has been completed in Henbei Province China

This is a hopper bottom steel silos project for a livestock farm in Hebei province,China.2 sets 500T corn storage silos and 1 set 100T soybeans meal storage silo.
The overall design drawings are as follows

Considering the poor fluidity of soybean meal, we TSE designed a 70 degree cone base angle for 100T soybeans meal storage silo,to make sure soybeans meal can go out smoothly.
And there is a flange connection at bottom of 100T silo,in order to connect with four axis screw conveyor which can also assist soybeans meal can be discharged smoothly.

Silo technical parameters are as follows,
2x500T galvanized steel silo specification in this system
Eave height:16.203m
Total height:18.113m
Hopper bottom silo rings:10 rings
Silo bottom angle:45°
Zinc coated:275g/m2

100T galvanized steel silo specification in this system
Silo model:TCZK04505
Eave height:10.48m
Total height:11.58m
Zinc coated:275g/m2
TSE similar silos cases as below for your reference.


Hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are the steel silos with a cone bottom. Hopper bottom silos are erected on the supporting structure to make the products unloading easily through gravity. Hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos bottom through transportation equipment,achieving accurate material extraction or batching.
